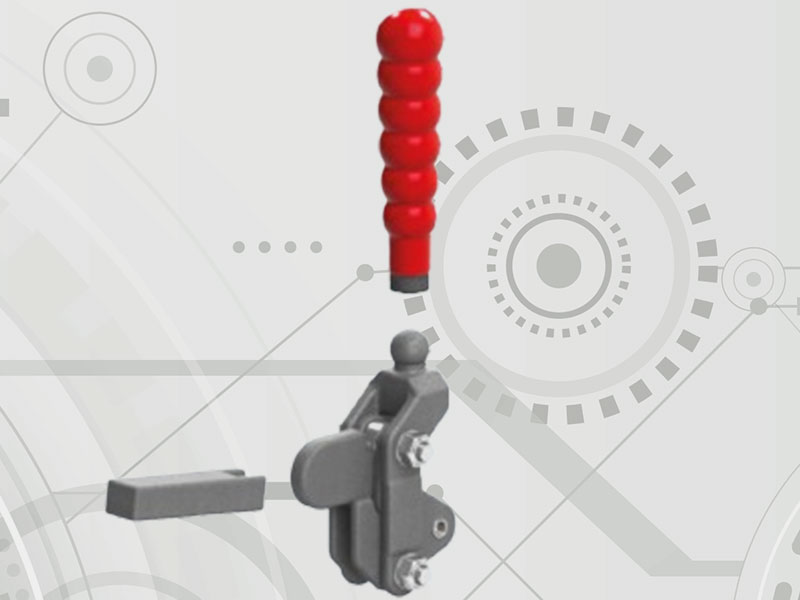

CE-V Series Vertical Handle

CE-V

Chamunda's CE-V such type of clamp hold the job downward clamping action. These clamps are with a holding capacity ranging from 100 kgs to 1025 kgs. The opening angle of 900 gives full clearance loading and unloading of job. The clamping arm can be either solid bar, U shaped or fixed holes which is suitable for the purpose.

CE-H Series Horizontal Handle

CE-H

Chamunda's CE-H Series clamps are similar to our CE-V clamps. The difference is angle low height design. Our H series clamps opens in opposite direction. The holding capacity is ranging from 160 kgs to 500 kgs.

CE-PS/CE-LH SeriesStraight Line Action

CE-PS/CE-LH

Chamunda's Straight Line Action clamp is designed extremely compact for its large capacity. The low height clamp is very useful what overhead clearance is problem plunger moves forward and locks as Handle is moved forward. Clamp locks in either extended or retracted position plunger retracts position when handle is moved backward. The plunger is drilled and taped for easy attachment for the purpose. The Holding Capacity is from 90 kgs to 3700 kgs.

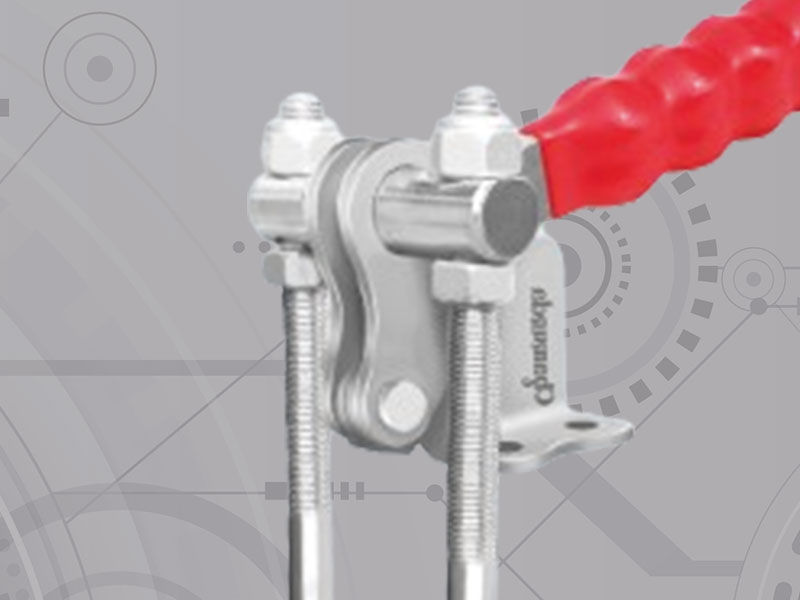

CE-H Series: Pull Action

CE-H

Chamunda's CE-H clamps holding capacity with easy operation. The treated "U" bolts bar hook permits easy simple adjustment and provide a positive connection with the supplied latch plate. These clamps suits them ideally for holding adjustment heavy forces and high pressures such as two piece molds those generated it two piece plastic molding. It is ideal for Fibre Glass, Food and Chemical Industries. The pressure capacity is from 100 kgs to 3000 kgs.

About Us

Over 200 different Toggle Clamps and clamping systems are available to suit nearly any application requirements. We have developed these clamps for infinite applications, considering the different shapes and sizes, holding capacity as well as operating ease.

What Chamunda Equipments committed ?

Chamunda Equipments pioneered the development of Toggle Clamps in India since 1986 and still manufactures the country's widest and most recognized line of these useful and adaptable tools. Until two decades ago, Toggle Clamps were imported — another leak in our foreign exchange reserves. Thanks to the foresight of our seniors, Chamunda Equipments was born and under their able administration and infallible technical know-how, Toggle Clamps were manufactured in India.

During the last twenty years Chamunda Equipments has come a long way. Constant endeavor in quality enhancements and application areas has led Chamunda Equipments to be a globally competitive Toggle Clamp manufacturer. We are proud that we have put India on the world map as far as broad spectrum Toggle Clamp manufacturing is concerned. We owe a lot to our customers, who have always been a source of inspiration and unrelenting support.

Chamunda Equipments is committed to meeting the changing needs of its customers through continuous improvements and development of its clamping products and services. This commitment is seen in all our products manufactured thru the years, from manual clamps to our latest range of hydraulic clamps.

All our sincere Endeavor are being made for their constant Expansion and Update keeping in mind our valued users even for Specific Requirements.

Since 1986, we have been privileged to have your continued support, which we attribute to the quality of our products and our dedication to exceptional service, both before and after sales. Your satisfaction remains our utmost priority, and we are grateful for your ongoing trust in us.

Where can I purchase toggle clamps?

Toggle clamps, available at Chamunda Equipments, provide a comprehensive solution for all types of toggle clamp needs. It's your one-stop destination for toggle clamps of any variety.

Call To Action

About Toggle Clamps

Toggle clamps are essential tools used in various industries and applications for securing workpieces in place quickly and efficiently. They provide a strong grip and hold objects firmly during machining, welding, woodworking, assembly, and other tasks where stability and precision are critical. Here's a breakdown of their components, types, working principle, and applications:

Components of Toggle Clamps

What types of toggle actions are available on chamunda equipments clamps?

Chamunda Equipments manufactures over 200 standard Toggle Clamps and fixturing systems. Among them, the following Toggle actions are available:

  • Vertical Hold Down Action:Clamps of this type hold the workpiece securely with a downward clamping action. Our vertical hold down toggle clamps are designed to provide reliable clamping force, ensuring optimal stability and precision in vertical clamping applications.
  • Straight Line Action: Also known as horizontal or push/pull clamps, these toggle clamps feature a moving plunger that slides along its axis. Our straight line action toggle clamps offer versatile clamping orientations, allowing for horizontal clamping tasks with effortless operation and precise control.
  • Pull Action:Designed specifically for applications requiring a closure mechanism, such as mould closures, sealing chambers, or doors, our pull action toggle clamps feature a hook or U-bolt as the clamping arm. These clamps provide secure and reliable closure, ensuring efficient operation and enhanced productivity.
  • Squeeze Action:Toggle clamps of this type hold parts together using a pinching or squeezing force. Our squeeze action toggle clamps, including vise-grips and toggle-pliers, deliver strong and consistent clamping force, making them ideal for various assembly, welding, and fabrication tasks.

Our Toggle Clamp Features

Our toggle clamps are engineered with precision, designed for durability, and built to meet the demands of various industrial applications.

What is a Toggle clamp?

Toggle Clamps operate on a simple mechanical principal and are used to fasten objects instantly, especially for jigs and fixtures.

Typically, a Toggle clamp consists of

A handle to operate the mechanism A clamping arm to hold the work-piece Linkages to multiply the applied force and a base to mount the clamp to a work bench or other surface.

How does the Toggle action work?

Toggle action clamps operate through a linkage system of levers and pivots (fulcrum). The fixed-length levers, connected by pivoting pins, supply the action and clamping force. The Toggle action has a lock point which is a fixed stop and linkage. Once in the lock position, the clamp does not unlock unless the linkage is moved/released. Although oriented in different ways, most Toggle Clamps are designed using this basic principle.

Types of Toggle Clamps

Toggle clamps operate on the principle of a toggle mechanism, which amplifies the force applied to the workpiece. When the handle is moved to the clamping position, the linkage mechanism locks in place, creating a rigid structure that securely holds the workpiece. Releasing the handle disengages the toggle mechanism, allowing the clamp arm to move freely.

  • Vertical Handle Toggle Clamp: The handle operates vertically, exerting downward pressure on the workpiece.
  • Horizontal Handle Toggle Clamp: The handle moves horizontally, applying pressure perpendicular to the work surface.
  • Push-Pull Toggle Clamp: Combines both vertical and horizontal handle movement for versatile clamping orientations.
  • Latch-Action Toggle Clamp: Utilizes a latch mechanism for quick release and re-engagement of the clamp.

Advantages of Toggle Clamps.

Toggle clamps are indispensable tools in industries where secure and reliable clamping is essential for quality and efficiency. With their versatility and ease of use, they play a vital role in improving workflow and achieving consistent results across a wide range of applications.

  • Quick Setup:Provide rapid clamping and release, increasing productivity.
  • Strong Grip: Offer high clamping force to hold workpieces securely.
  • Versatility:Available in various sizes and configurations for diverse applications.
  • Repeatable Accuracy:Maintain consistent clamping pressure for precise machining and assembly.
  • User-Friendly:Easy to operate with ergonomic handles and intuitive designs.

Coloured Vinyl PVC grip on handle for safety and comfort of operator's hand.

All plunger are hardened and ground with nicle crome plated.

Maximun clearance for easy of loading and unloading work piece.

All parts are zinc plated for resists corrosion and easy to clean surface.

All rivets are hardened and ground in Steel Material.

All Clamps are available in Stainless Steel.

Frequently Asked Questions

These FAQs should provide a good starting point for understanding toggle clamps and their applications.

Toggle clamps are mechanical devices used to hold workpieces securely in place during machining, welding, woodworking, or other similar applications. They consist of a handle to operate the clamp, a clamping arm, and a mechanism that applies force to hold the workpiece.

Toggle clamps work on the principle of leverage. When the handle is operated, it moves the clamping arm through a pivot point, engaging the toggle mechanism. This mechanism amplifies the force applied by the operator, allowing the clamp to exert a strong holding force on the workpiece.

Toggle clamps come in various types, including horizontal toggle clamps, vertical toggle clamps, push-pull toggle clamps, latch-action toggle clamps, straight-line action toggle clamps, and hook toggle clamps. Each type is designed for specific applications and requirements.

Toggle clamps offer several advantages, including rapid clamping and releasing, high clamping force, easy operation with one hand, adjustable clamping pressure, and compatibility with various workpiece shapes and sizes.

Toggle clamps are typically made from materials such as steel, stainless steel, or zinc-plated steel for strength, durability, and corrosion resistance. The handle and grip components may be made from plastic or rubber for comfort and ergonomics.

When selecting a toggle clamp, consider factors such as the clamping force required, the size and shape of the workpiece, the available mounting space, and the operating environment (e.g., temperature, presence of corrosive substances). Consult the manufacturer's specifications and guidelines for guidance.

Yes, operators should be trained on the proper use of toggle clamps to avoid accidents or injuries. Safety precautions may include wearing appropriate personal protective equipment (PPE), keeping hands clear of moving parts during operation, and ensuring that the workpiece is securely positioned before clamping.
